Column Type Load Cell Miniature Tension And Compression Load Cell

Brand Name : BRANS

Model Number : TCF-717

Place of Origin : China

MOQ : 1pcs

Payment Terms : L/C, T/T, Western Union,Paypal

Delivery Time : 5-7 work days

Packaging Details : Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Out-wire : 5 Wires

Feature : High Accuracy

Working load : 0.05/0.1/0.2/0.5/1/2/5/10/20/50/100kN

Combined Error : 0.1%F.S.

Rated output : 2.0±10%mV/V

Recommended excitation : 5~15VDC

Zero Balance : ±0.05mV/V

Cable Size : Φ3×4000mm

Contact Now

Miniature Column Type Compression and Tension Load Cell-TCF-717

Product Description:


Brans TCF717 Miniature Column Load Cell offers an impressive compact design for high capacity applications. With a diameter of 41mm, it is ideal for tight spaces. The TCF717 is offered in 17-4 PH stainless-steel in 50N to 100KN capacities with a raised surface radius to lower the possibility of off center loading.


The TCF717 Miniature Column Load Cell is designed to measure loads in compression. This model is manufactured in China and uses metal foil strain gauge technology. Additional design features include the use of a strain relief, which provides much greater protection when pulled.


Features & Applications:

  • High speed, low deflection
  • Minimal mounting clearance
  • Outer diameter 41mm, 25mm as height
  • 17-4 PH stainless-steel construction
  • For use in both tension and compression
  • Utilizes metal foil strain gauge technology


Specifications:

Capacity 0.05/0.1/0.2/0.5/1/2/5/10/20/50/100kN
Rated output

2.0±10%mV/V

Combined Error 0.1%F.S.
Zero balance ±0.05mV/V
Non-linearity ±0.1%F.S.
Hysteresis ±0.1%F.S.
Repeatability ±0.1%F.S.
Creep (30min) ±0.05%F.S.
Temperature effect on sensitivity ±0.05%F.S./10℃
Temperature effect on zero ±0.05%F.S./10℃
Input resistance 385±10Ω
Output resistance 350±5Ω
Insulation resistance ≥5000MΩ/100VDC
Recommended excitation 5-15V
Maximum Excitation 20V
Compensated temp. range -10~60℃
Operation temp. range -20~80℃
Safe overload 150%F.S.
Ultimate overload 200%F.S.
IP class IP66 (Customizable)
Cable size Φ3×4000mm (Customizable)
Material Stainless steel


Dimension(MM):

Column Type Load Cell Miniature Tension And Compression Load Cell

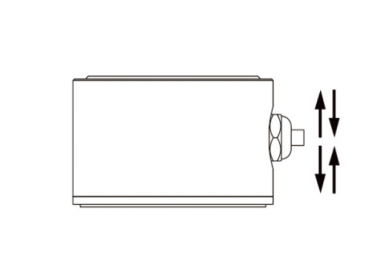

Load Direction:

Column Type Load Cell Miniature Tension And Compression Load Cell

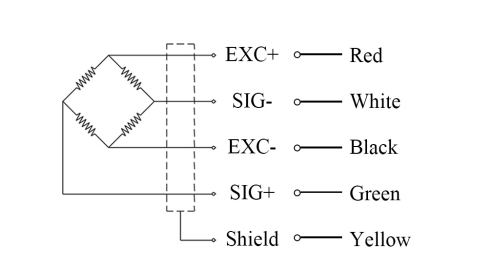

Wiring:

Column Type Load Cell Miniature Tension And Compression Load Cell
